Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

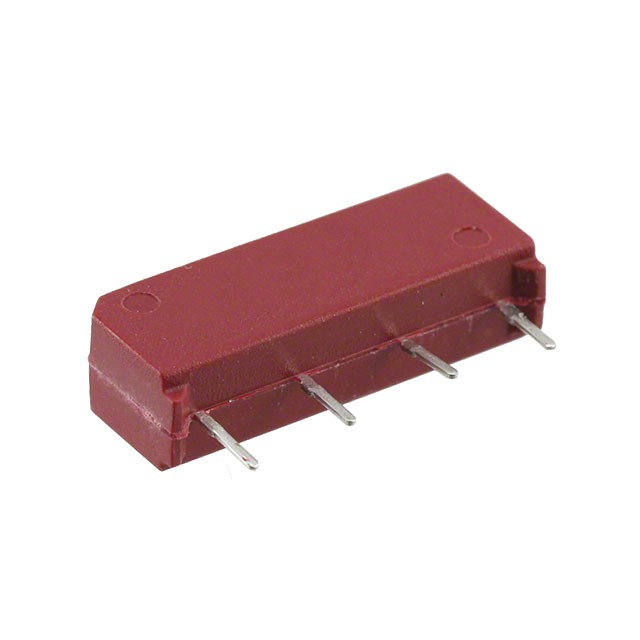

| Manufacturer | Coto Technology |
| Series | 9000 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 200VAC, 200VDC – Max |
| Coil Current | 10 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.35 ms |
| Release Time | 0.1 ms |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material | – |
| Coil Resistance | 500 Ohms |
| Base Product Number | 9001 |
