Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

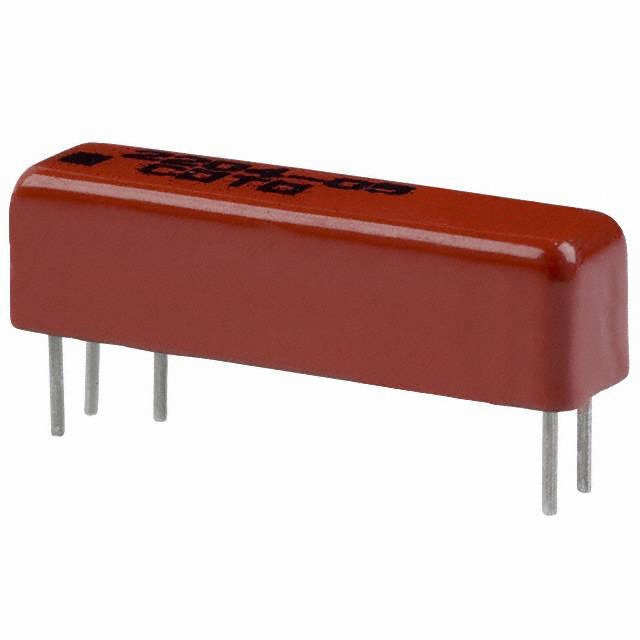

| Manufacturer | Coto Technology |
| Series | 2200 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 150VAC, 150VDC – Max |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Hermetically |
| Must Operate Voltage | 3.6 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 0.55 ms |
| Release Time | 0.1 ms |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material | – |
| Coil Resistance | 150 Ohms |
| Base Product Number | 2200 |
