Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

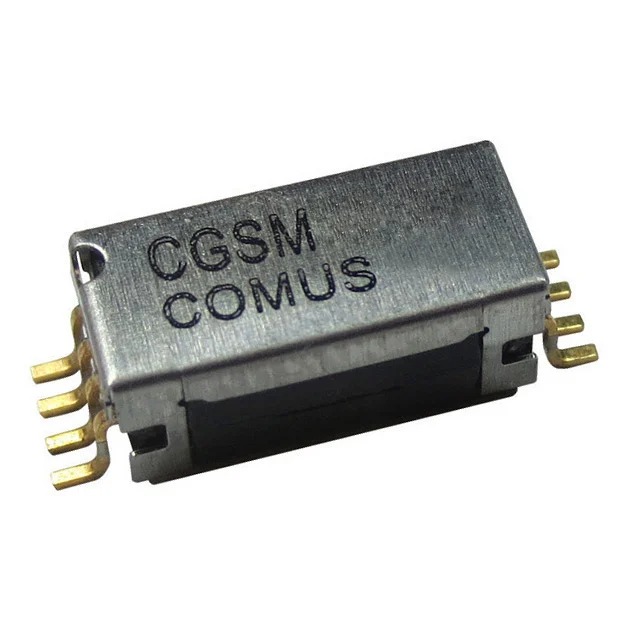

| Manufacturer | Comus International |
| Series | CGSM |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 3.3VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 120VAC, 170VDC – Max |
| Coil Current | 47.1 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Gull Wing |
| Seal Rating | – |
| Must Operate Voltage | 2.5 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.25 ms |
| Release Time | 0.05 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Ruthenium (Ru) |
| Coil Resistance | 70 Ohms |
| Base Product Number | CGSM-031A |
