Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

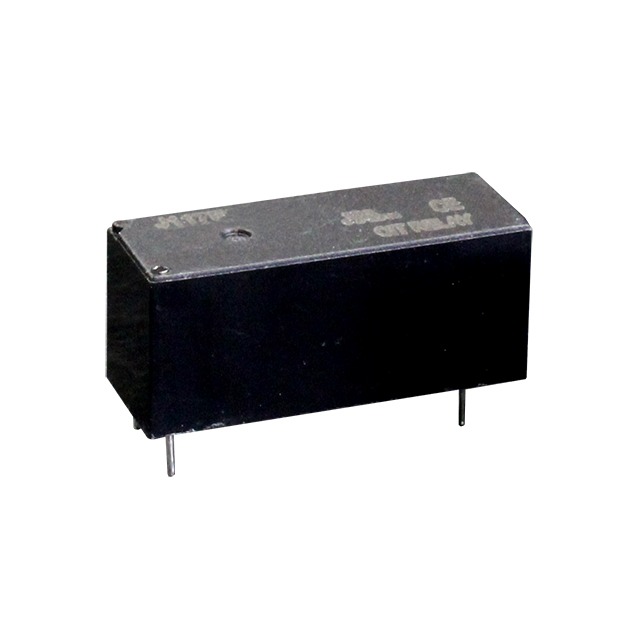

| Mfr | CIT Relay and Switch |
| Series | J117F |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 250VAC, 30VDC – Max |
| Load – Max Switching | 2000VA, 240W |
| Coil Current | 9.2 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 2.618 kOhms |
| Base Product Number | J117F1C |
