Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

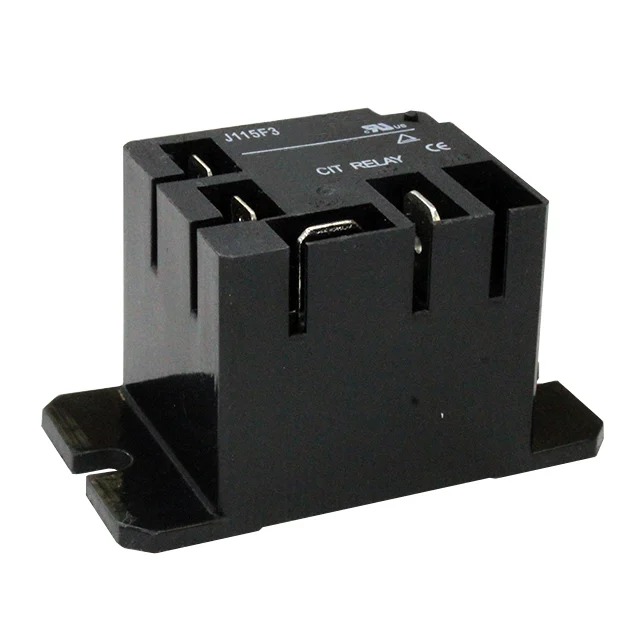

| Mfr | CIT Relay and Switch |
| Series | J115F3 |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 220VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 277VAC, 110VDC – Max |
| Load – Max Switching | 11080VA, 4400W |
| Coil Current | 16.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Quick Connect – 0.187″/0.250″ |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 165 VAC |
| Must Release Voltage | 66 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 13.49 kOhms |
| Base Product Number | J115F31 |
