| ÖZELLİK | AÇIKLAMA |
|---|---|

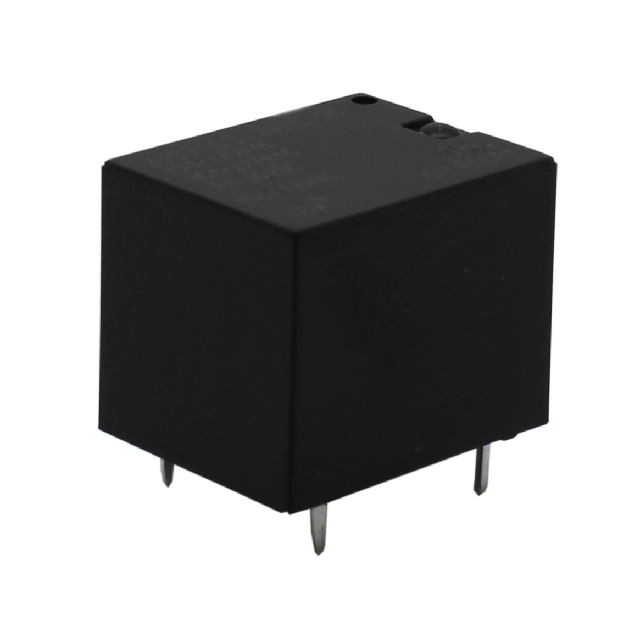

| Mfr | CIT Relay and Switch |
| Series | J107 |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 125VAC, 30VDC – Max |
| Load – Max Switching | 1875VA, 450W |
| Coil Current | 30 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 400 Ohms |
| Base Product Number | J1071AS |
