Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

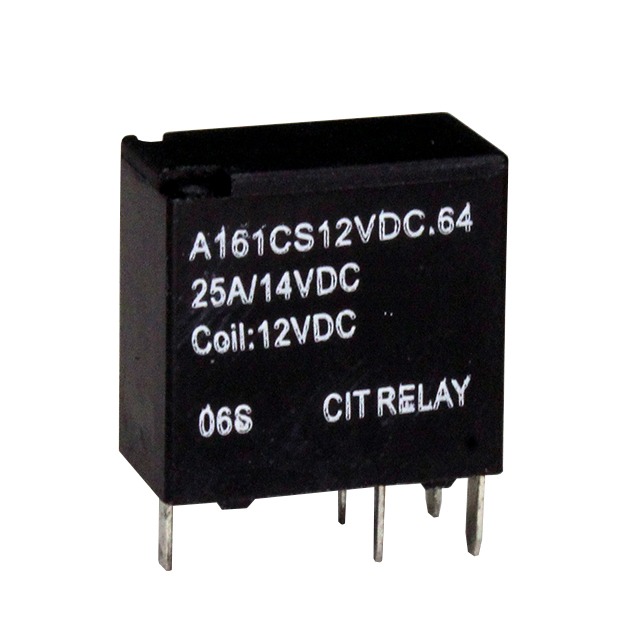

| Manufacturer | CIT Relay and Switch |
| Series | A16 |
| Packaging | Tube |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 53.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 20VDC – Max |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Features | Sealed – Fully |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Coil Power | 640mW |
| Coil Resistance | 225 Ohms |
| Base Product Number | A161CS |
