Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

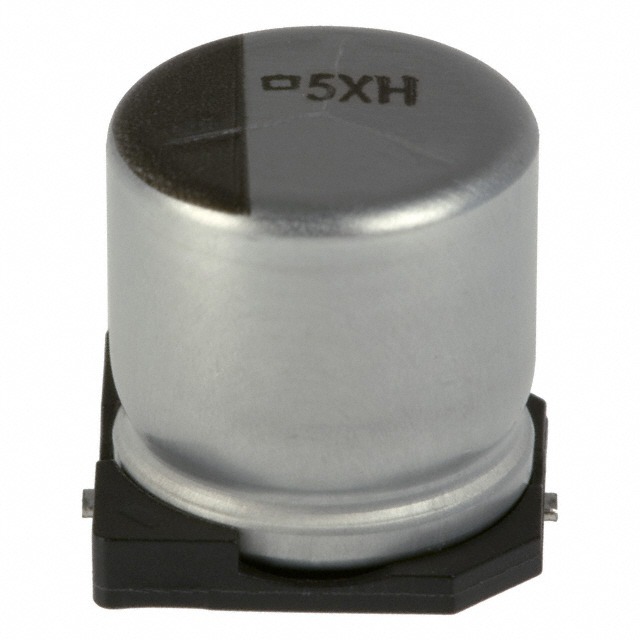

| Mfr | Chemi-Con |
| Series | Alchip™- MZR |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage – Rated | 50 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.394″ Dia (10.00mm) |
| Height – Seated (Max) | 0.406″ (10.30mm) |
| Surface Mount Land Size | 0.406″ L x 0.406″ W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
