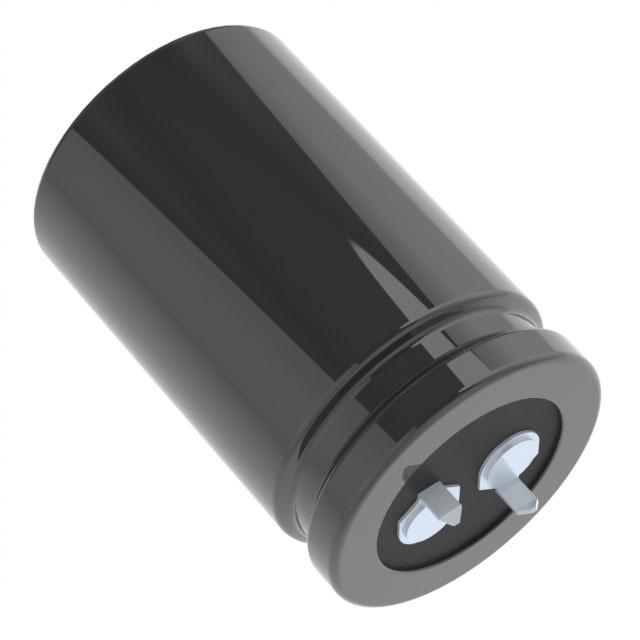

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Chemi-Con |
| Series | KMQ |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage – Rated | 200 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.62 A @ 50 kHz |
| Lead Spacing | 0.394″ (10.00mm) |
| Size / Dimension | 1.181″ Dia (30.00mm) |
| Height – Seated (Max) | 1.850″ (47.00mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can – Snap-In |
