Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

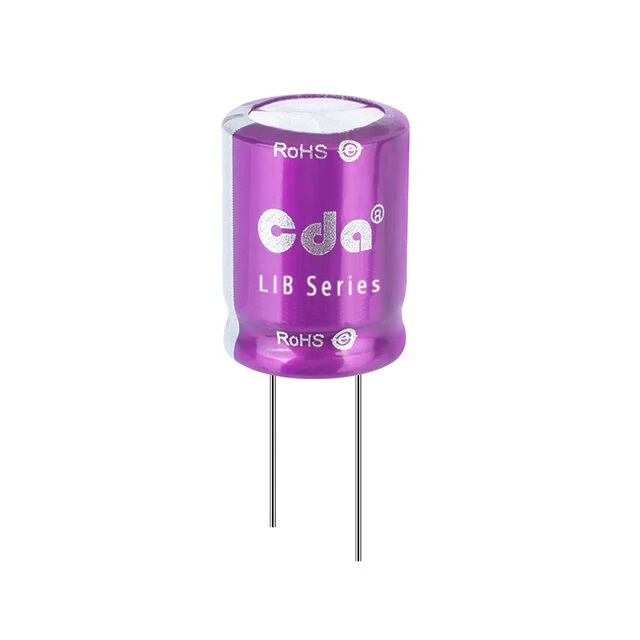

| Manufacturer | CDA (Zhifengwei Technology) |
| Series | LIB-4.0V |
| Packaging | Box |
| Part Status | Active |
| Capacitance | 1100 F |
| Tolerance | – |
| Voltage – Rated | 4 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C |
| Grade | – |
| Qualification | – |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Lead Spacing | 0.295″ (7.50mm) |
| Size / Dimension | 0.709″ Dia (18.00mm) |
| Height – Seated (Max) | 1.634″ (41.50mm) |
| Operating Temperature | -20°C ~ 65°C |
