Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

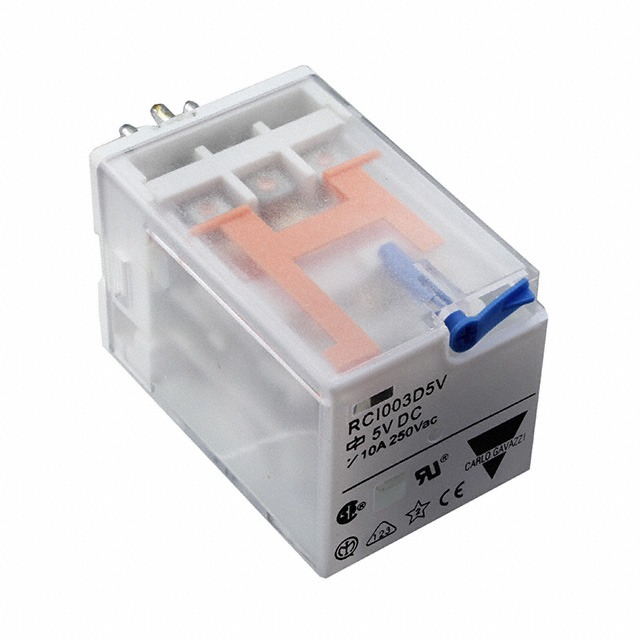

| Mfr | Carlo Gavazzi Inc. |
| Series | RCI |
| Packaging | Bulk |
| Part Status | Obsolete |
| Mounting Type | Socketable |
| Coil Voltage | 5VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC – Max |
| Load – Max Switching | – |
| Coil Current | 320 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Mechanical Indicator, Test Button |
| Termination Style | Plug In, 11 Pin (Octal) |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CE, CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Coil Resistance | 15.6 Ohms |
| Base Product Number | RCI003 |
