Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

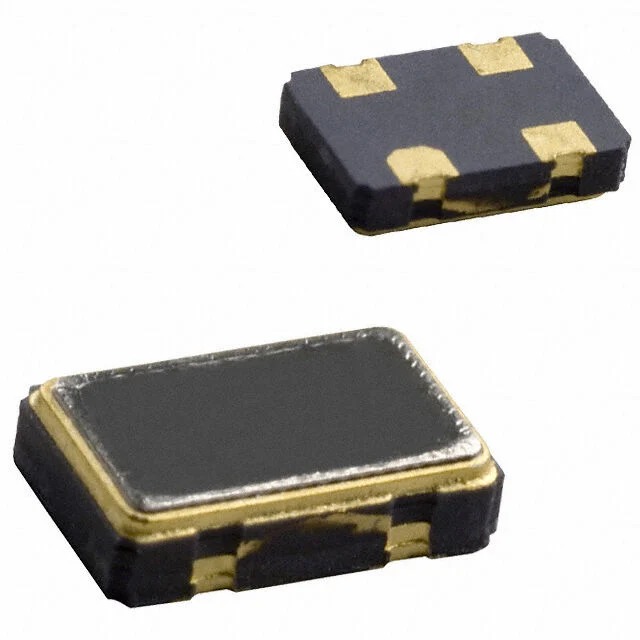

| Manufacturer | Cardinal Components Inc. |
| Series | FIPO™ CPPL |
| Packaging | Tube |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Available Frequency Range | 1 MHz ~ 133 MHz |
| Function | Standby |
| Output | CMOS |
| Voltage – Supply | 5V |
| Frequency Stability | ±50ppm |
| Frequency Stability (Total) | – |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 45mA |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197″ L x 0.126″ W (5.00mm x 3.20mm) |
| Height – Seated (Max) | 0.051″ (1.30mm) |
| Current – Supply (Disable) (Max) | 50 µA |
