Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

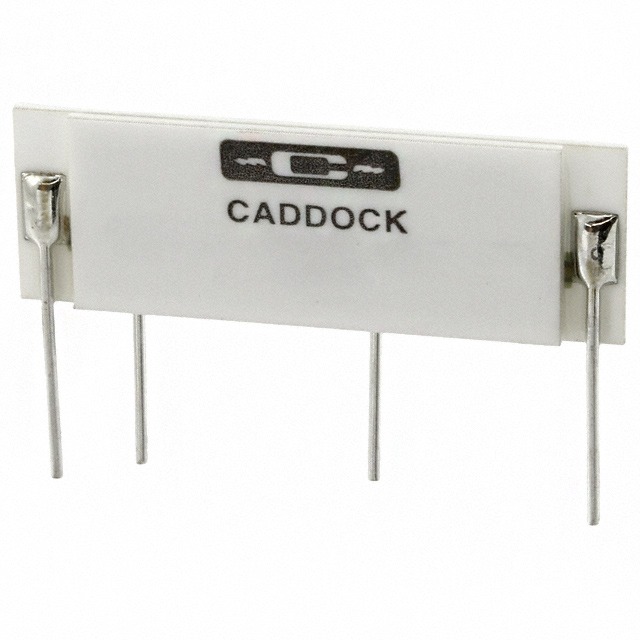

| Manufacturer | Caddock Electronics Inc. |
| Series | USVD |
| Packaging | Bulk |
| Part Status | Active |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 100k, 9.9M |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.01% |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Number of Pins | 4 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±10ppm/°C |
| Operating Temperature | -40°C ~ 85°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Variation |
| Supplier Device Package | – |
| Size / Dimension | 1.500″ L x 0.155″ W (38.10mm x 3.94mm) |
| Height – Seated (Max) | 0.520″ (13.21mm) |
