Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

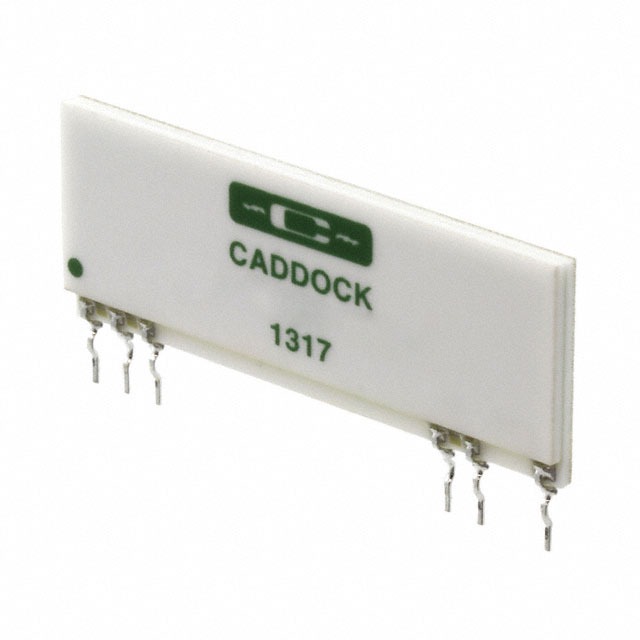

| Manufacturer | Caddock Electronics Inc. |
| Series | HVD |
| Packaging | Bulk |
| Part Status | Active |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 20k, 19.98M |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Number of Pins | 6 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±30ppm/°C |
| Operating Temperature | -40°C ~ 85°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Through Hole |
| Package / Case | 15-SIP, 6 Leads |
| Supplier Device Package | – |
| Size / Dimension | 1.500″ L x 0.110″ W (38.10mm x 2.79mm) |
| Height – Seated (Max) | 0.610″ (15.50mm) |
