| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Bourns Inc. |
| Series | PWR220T-20 |
| Packaging | Tube |
| Part Status | Active |
| Resistance | 500 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 20W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |

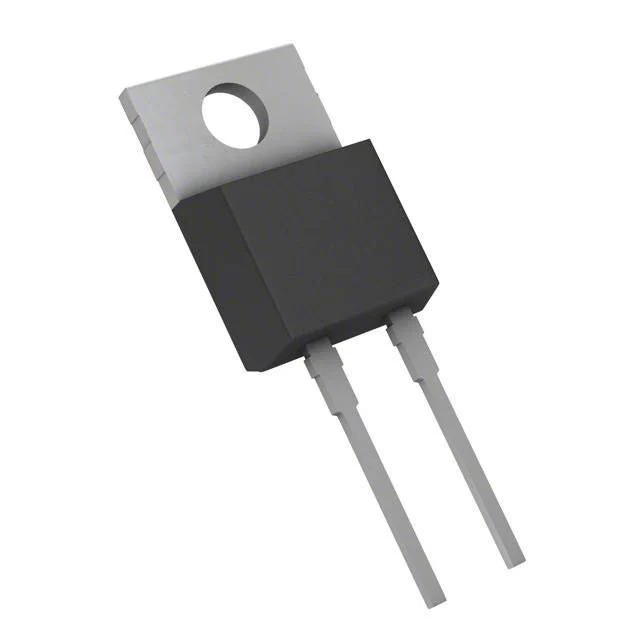

| Package / Case | TO-220-2, Variant |
| Supplier Device Package | TO-220-2 |
| Size / Dimension | 0.398″ L x 0.157″ W (10.10mm x 4.00mm) |
| Height – Seated (Max) | 0.575″ (14.60mm) |
| Number of Terminations | 2 |
| Failure Rate | – |
| Base Product Number | PWR220T |
