Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

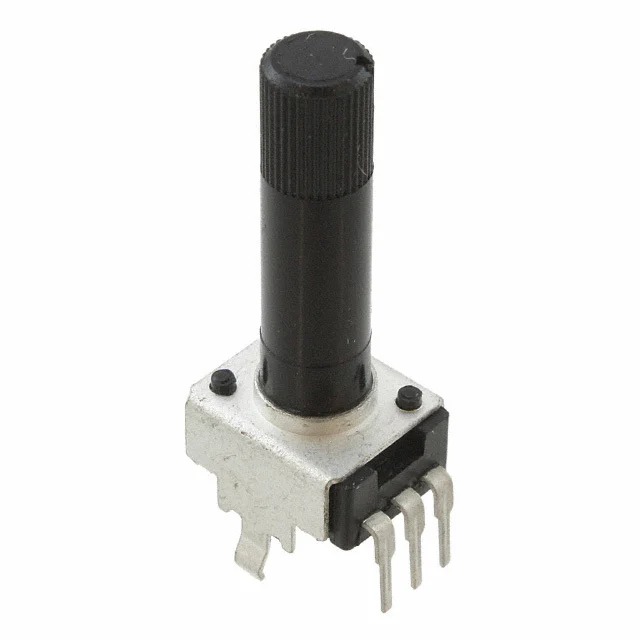

| Manufacturer | Bourns Inc. |
| Series | Pro Audio PTV09 |
| Packaging | Tray |
| Part Status | Active |
| Resistance (Ohms) | 20k |
| Tolerance | ±20% |
| Power (Watts) | 0.05W, 1/20W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | – |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | Top Adjustment |
| Temperature Coefficient | – |
| Rotation | 280° |
| Resistive Material | Carbon |
| Termination Style | PC Pins, Board Locks |
| Actuator Type | Knurled |
| Actuator Length | 1.181″ (30.00mm) |
| Actuator Diameter | 0.236″ (6.00mm) |
| Bushing Thread | – |
| Mounting Type | Through Hole, Snap In |
| Size – Body | Rectangular – 0.433″ x 0.382″ Face (11.00mm x 9.70mm) |
| Base Product Number | PTV09A |
