Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

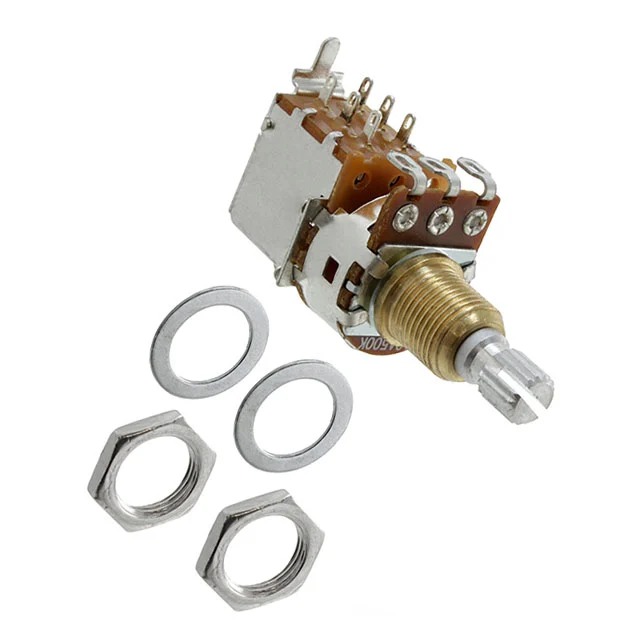

| Manufacturer | Bourns Inc. |
| Series | Pro Audio PDB183-GTR |
| Packaging | Tray |
| Part Status | Active |
| Resistance (Ohms) | 10k |
| Tolerance | ±20% |
| Power (Watts) | 0.1W, 1/10W |
| Built in Switch | Push-Pull, DPDT |
| Number of Turns | 1.0 |
| Taper | Logarithmic |
| Number of Gangs | 1 |
| Adjustment Type | User Defined |
| Temperature Coefficient | – |
| Rotation | 300° |
| Resistive Material | Carbon |
| Termination Style | Solder Lug |
| Actuator Type | Knurled and Slotted |
| Actuator Length | 0.748″ (19.00mm) |
| Actuator Diameter | 0.236″ (6.00mm) |
| Bushing Thread | – |
| Mounting Type | Panel Mount |
| Size – Body | Round – 0.669″ Dia (17.00mm) |
| Base Product Number | PDB183 |
