Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Bourns Inc. |
| Series | CAT16 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 2k |
| Tolerance | ±1% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 8 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Surface Mount |

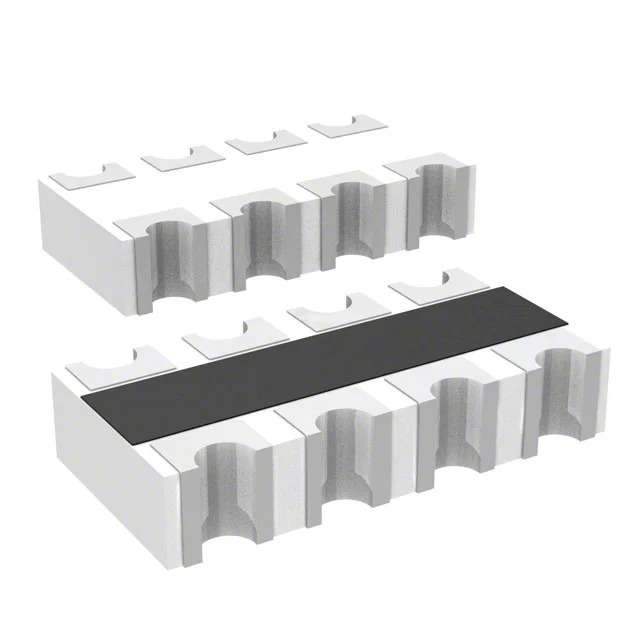

| Package / Case | 1206 (3216 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126″ L x 0.063″ W (3.20mm x 1.60mm) |
| Height – Seated (Max) | 0.024″ (0.60mm) |
| Base Product Number | CAT16 |
