Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

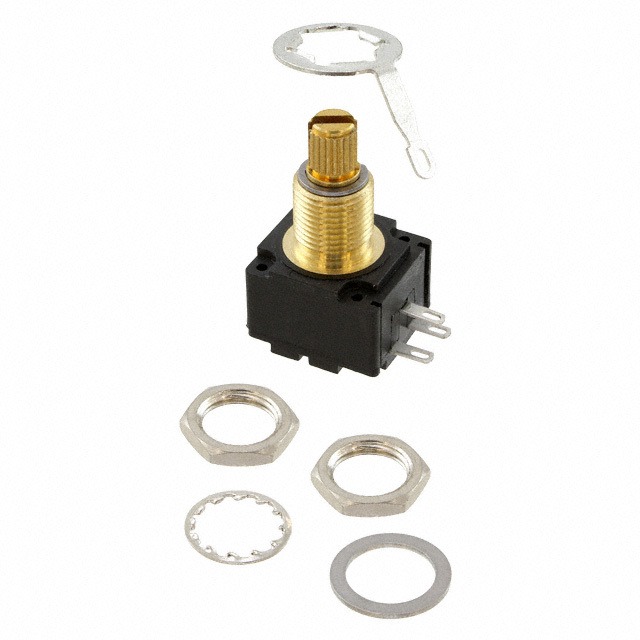

| Manufacturer | Bourns Inc. |
| Series | Pro Audio 95 Premium |
| Packaging | Bulk |
| Part Status | Active |
| Resistance (Ohms) | 250k |
| Tolerance | ±20% |
| Power (Watts) | 0.25W, 1/4W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | – |
| Taper | Logarithmic |
| Number of Gangs | 1 |
| Adjustment Type | User Defined |
| Temperature Coefficient | ±1000ppm/°C |
| Rotation | 300° |
| Resistive Material | Conductive Plastic |
| Termination Style | Solder Lug |
| Actuator Type | Knurled and Slotted |
| Actuator Length | 0.685″ (17.40mm) |
| Actuator Diameter | 0.235″ (5.97mm) |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Size – Body | Rectangular – 0.687″ x 0.625″ Face (17.45mm x 15.88mm) |
| Base Product Number | 95A1D |
