| ÖZELLİK | AÇIKLAMA |
|---|---|

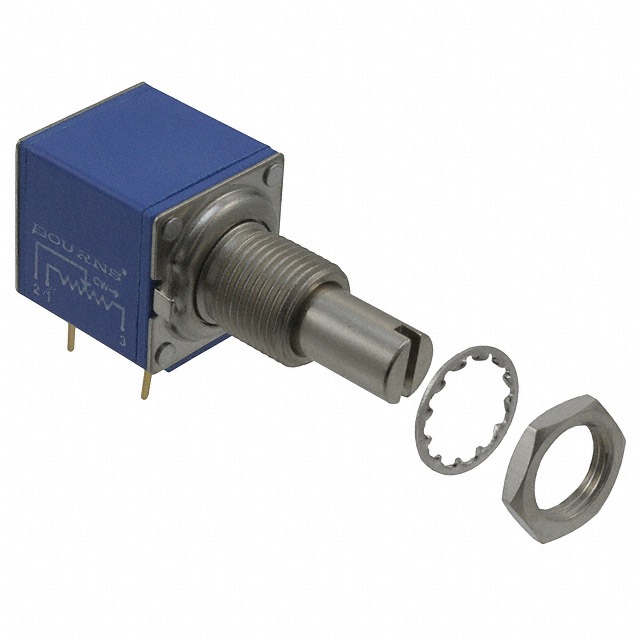

| Manufacturer | Bourns Inc. |
| Series | 83 |
| Packaging | Tray |
| Part Status | Active |
| Resistance (Ohms) | 10k |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Built in Switch | None |
| Number of Turns | 10.0 |
| Features | – |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | Side Adjustment |
| Temperature Coefficient | ±50ppm/°C |
| Rotation | 3600° |
| Resistive Material | Wirewound |
| Termination Style | PC Pins |
| Actuator Type | Slotted |
| Actuator Length | 0.750″ (19.05mm) |
| Actuator Diameter | 0.250″ (6.35mm) |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Size – Body | Square – 0.625″ x 0.625″ Face (15.88mm x 15.88mm) |
| Base Product Number | 83A1A |
