Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

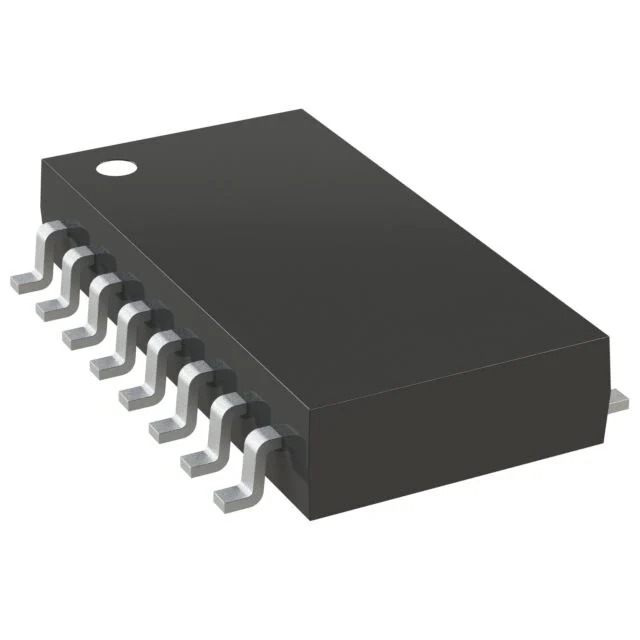

| Manufacturer | Bourns Inc. |
| Series | 4800P |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 10k |
| Tolerance | ±2% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 16 |
| Power Per Element | 160mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | – |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.220″, 5.59mm Width) |
| Supplier Device Package | 16-SOM |
| Size / Dimension | 0.440″ L x 0.220″ W (11.18mm x 5.59mm) |
| Height – Seated (Max) | 0.094″ (2.40mm) |
| Base Product Number | 4816P |
