Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

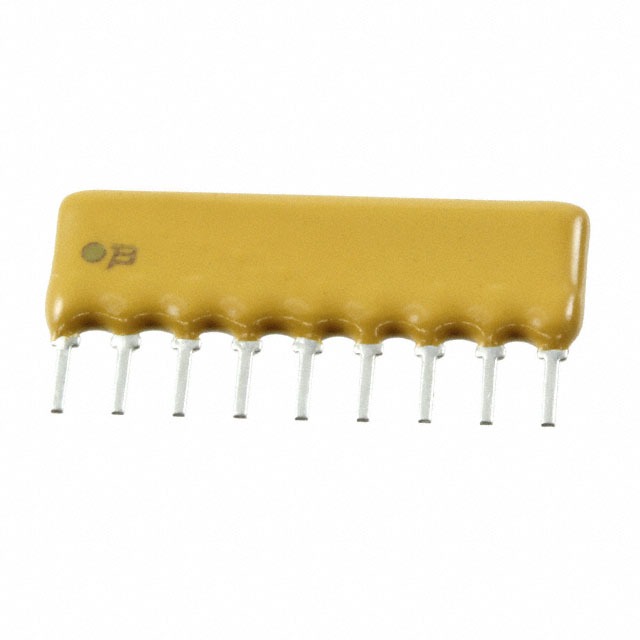

| Manufacturer | Bourns Inc. |
| Series | 4600H |
| Packaging | Bulk |
| Part Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 4.7k |
| Tolerance | ±2% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | 50ppm/°C |
| Number of Pins | 9 |
| Power Per Element | 300mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP |
| Supplier Device Package | 9-SIP |
| Size / Dimension | 0.898″ L x 0.098″ W (22.81mm x 2.49mm) |
| Height – Seated (Max) | 0.200″ (5.08mm) |
| Base Product Number | 4609H |
