Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

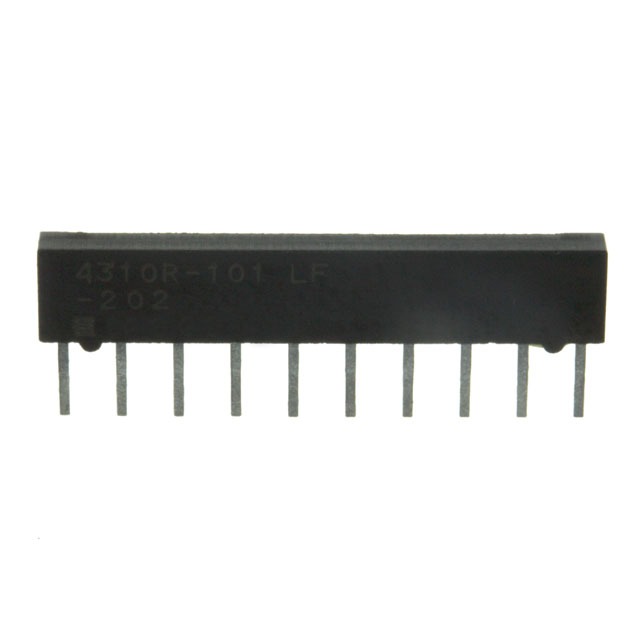

| Manufacturer | Bourns Inc. |
| Series | 4300R |
| Packaging | Tube |
| Part Status | Active |
| Circuit Type | R2R Ladder |
| Resistance (Ohms) | 10k, 20k |
| Tolerance | ±2% |
| Number of Resistors | 16 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | 50ppm/°C |
| Number of Pins | 10 |
| Power Per Element | 125mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP |
| Supplier Device Package | 10-SIP |
| Size / Dimension | 0.984″ L x 0.085″ W (24.99mm x 2.16mm) |
| Height – Seated (Max) | 0.195″ (4.95mm) |
| Base Product Number | 4310R |
