Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Bourns Inc. |
| Series | 4100R |
| Packaging | Tube |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 100 |
| Tolerance | ±2% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | 50ppm/°C |
| Number of Pins | 16 |
| Power Per Element | 250mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Through Hole |

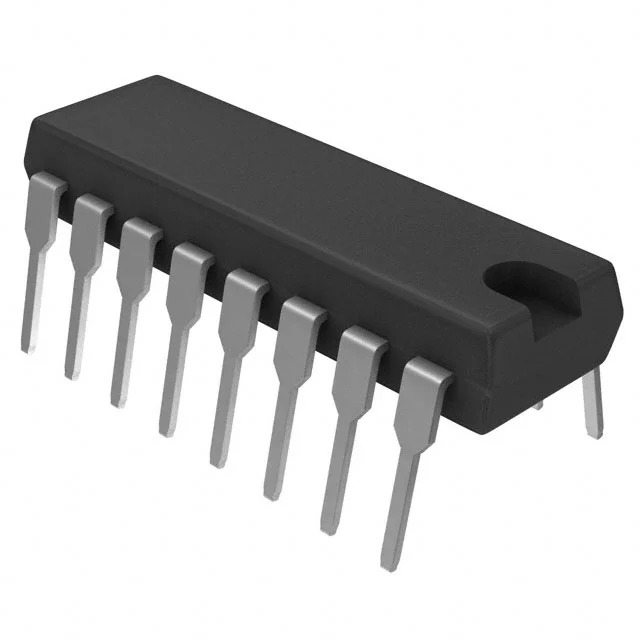

| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-DIP |
| Size / Dimension | 0.865″ L x 0.300″ W (21.97mm x 7.62mm) |
| Height – Seated (Max) | 0.185″ (4.69mm) |
| Base Product Number | 4116R |
