Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

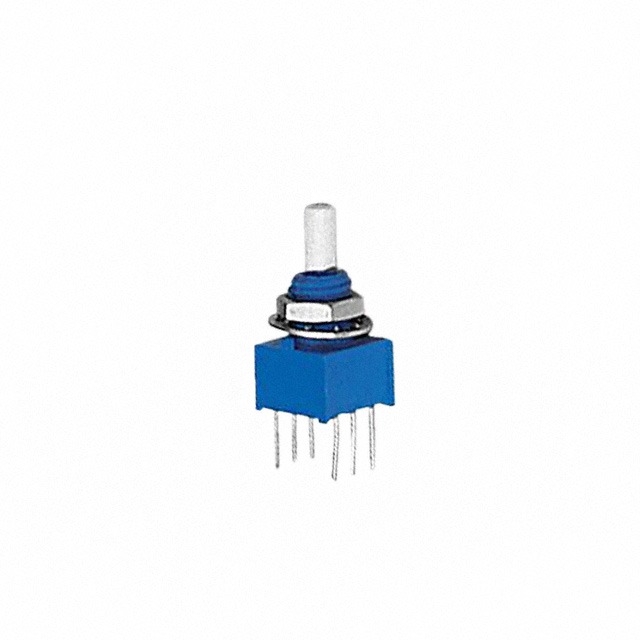

| Manufacturer | Bourns Inc. |
| Series | Pro Audio 3310 |
| Packaging | Bulk |
| Part Status | Active |
| Resistance (Ohms) | 10k |
| Tolerance | ±20% |
| Power (Watts) | 0.25W, 1/4W |
| Built in Switch | Rotary, SPST |
| Number of Turns | 1.0 |
| Features | Sealed |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | Top Adjustment |
| Temperature Coefficient | ±1000ppm/°C |
| Rotation | 300° |
| Resistive Material | Conductive Plastic |
| Termination Style | PC Pins |
| Actuator Type | Slotted |
| Actuator Length | 0.750″ (19.05mm) |
| Actuator Diameter | 0.125″ (3.18mm) |
| Bushing Thread | 1/4-32 |
| Mounting Type | Panel Mount |
| Size – Body | Rectangular – 0.384″ x 0.375″ Face (9.75mm x 9.53mm) |
| Base Product Number | 3310H |
