Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail, TTL |
| Voltage – Supply, Single/Dual (±) | 2.5V ~ 5.5V, ±1.25V ~ 2.75V |
| Voltage – Input Offset (Max) | 5mV @ 5.5V |
| Current – Input Bias (Max) | 1pA @ 5.5V |
| Current – Output (Typ) | – |
| Current – Quiescent (Max) | 96µA |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 210ns |
| Hysteresis | ±2.5mV |
| Operating Temperature | -40°C ~ 85°C |

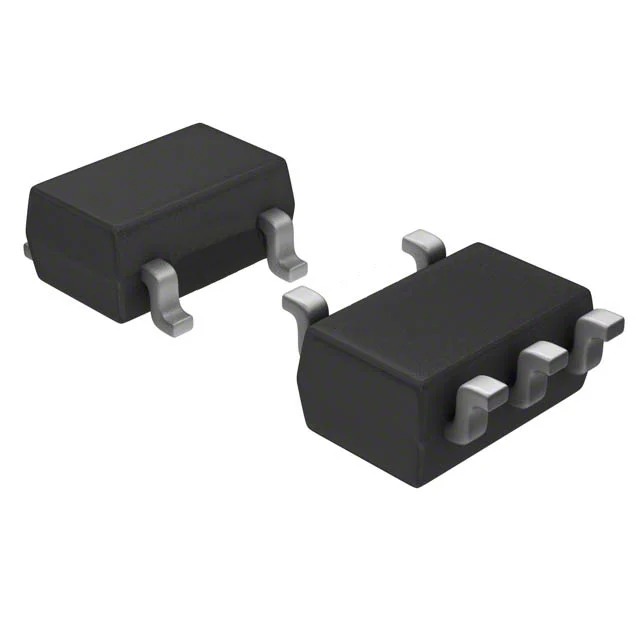

| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | MAX987 |
