| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | MAX5492 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 909.1, 9.091k |
| Tolerance | – |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.1% |
| Resistor-Ratio-Drift | ±1.5ppm/°C |
| Number of Pins | 5 |
| Power Per Element | 160mW |
| Temperature Coefficient | ±35ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |

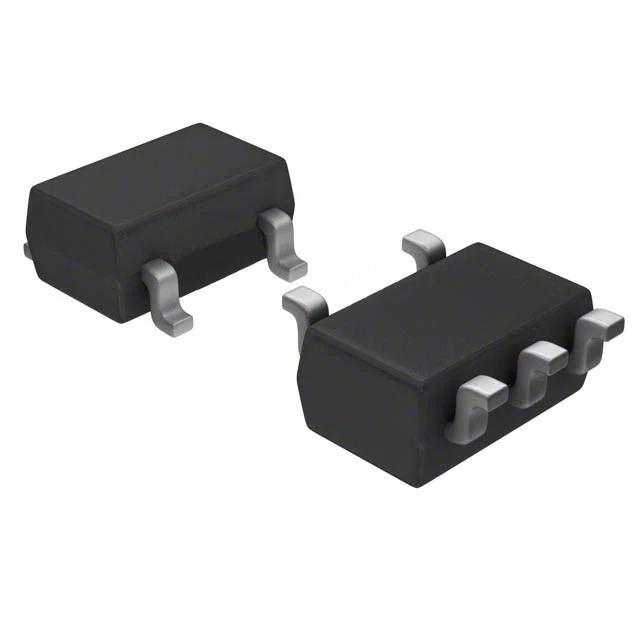

| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Size / Dimension | 0.114″ L x 0.064″ W (2.90mm x 1.63mm) |
| Height – Seated (Max) | 0.057″ (1.45mm) |
| Base Product Number | MAX5492 |
