Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage – Supply, Single (V+) | 2V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 15ns, 10ns |
| -3db Bandwidth | – |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 15pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -96dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |

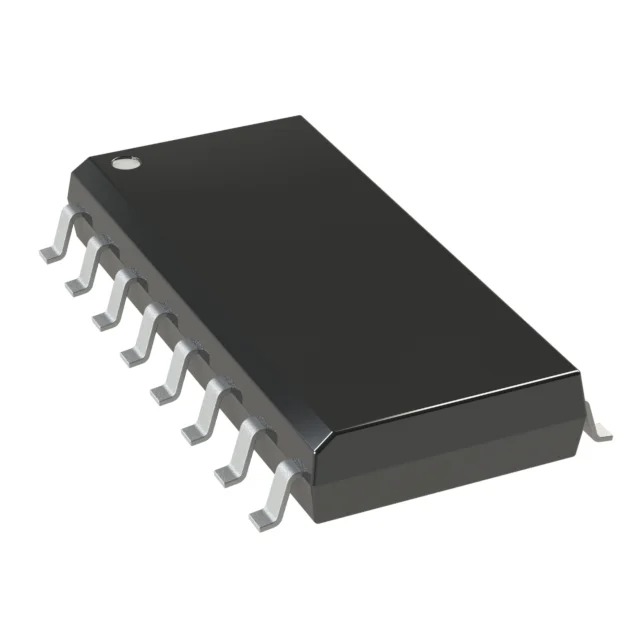

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | MAX4618 |
