Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage – Supply, Single (V+) | 2V ~ 12V |
| Voltage – Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| -3db Bandwidth | – |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |

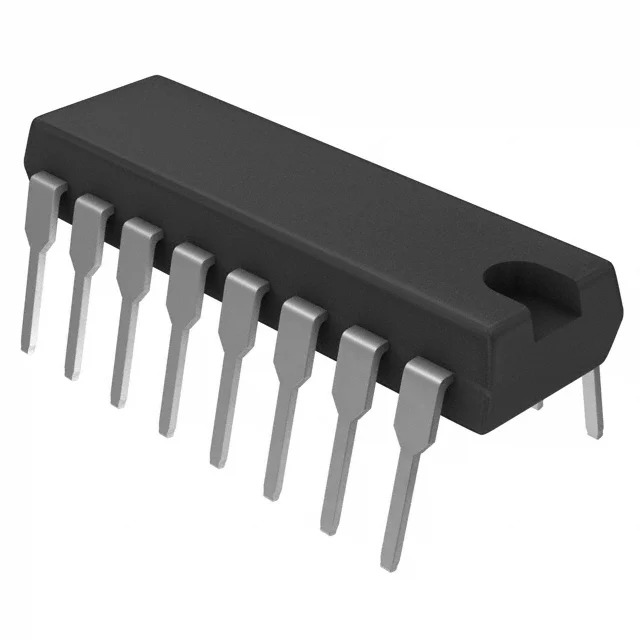

| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | MAX4521 |
