Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3.5kOhm |
| Channel-to-Channel Matching (ΔRon) | 175Ohm |
| Voltage – Supply, Single (V+) | 10V ~ 30V |
| Voltage – Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1µs, 500ns |
| -3db Bandwidth | – |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 1.7pF, 1.7pF |
| Current – Leakage (IS(off)) (Max) | 10pA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |

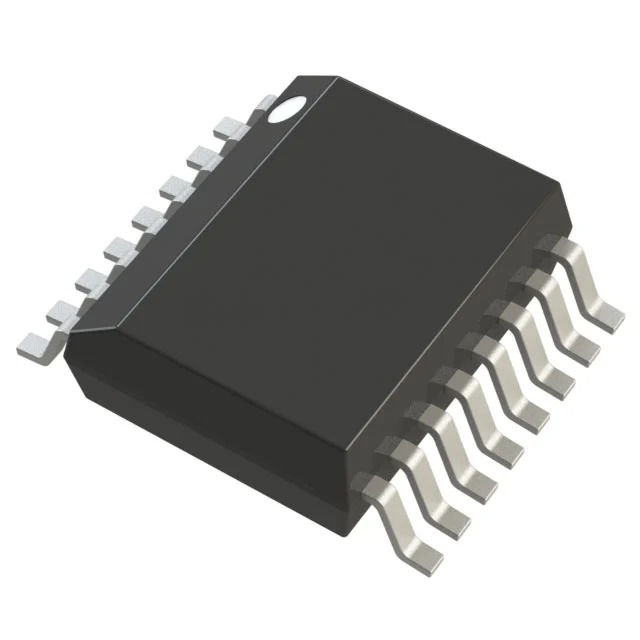

| Package / Case | 16-SSOP (0.154″, 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | MAX326 |
