Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | Beyond-the-Rails™ |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 330mOhm |
| Channel-to-Channel Matching (ΔRon) | 3mOhm |
| Voltage – Supply, Single (V+) | 1.6V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 32.5ms, 8.8ms (Typ) |
| -3db Bandwidth | 220MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 19pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -55dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | – |
| Qualification | – |
| Mounting Type | Surface Mount |

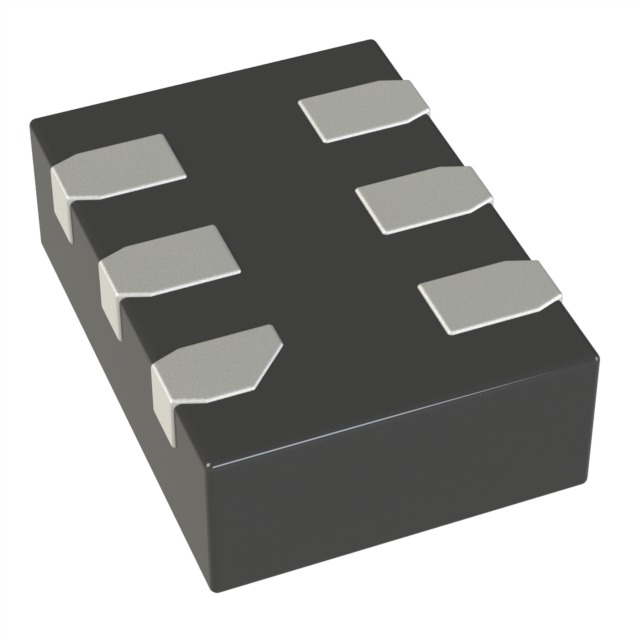

| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-FC2QFN (1.25×1.75) |
