Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 2Ohm |
| Channel-to-Channel Matching (ΔRon) | 5.1mOhm |
| Voltage – Supply, Single (V+) | 3V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 300µs, 1ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 1370pC |
| Channel Capacitance (CS(off), CD(off)) | – |
| Current – Leakage (IS(off)) (Max) | 250nA |
| Crosstalk | -83dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

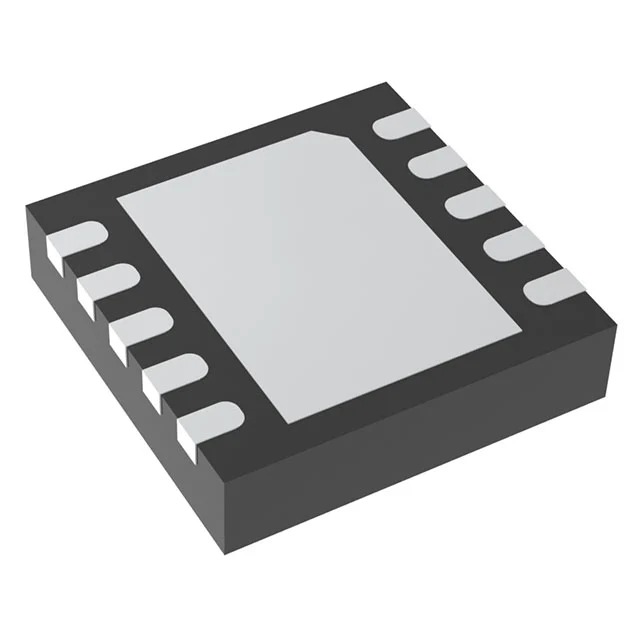

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3×3) |
| Base Product Number | MAX14761 |
