Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | Over-The-Top® |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | with Voltage Reference |
| Number of Elements | 1 |
| Output Type | Open-Collector |
| Voltage – Supply, Single/Dual (±) | 1.4V ~ 18V |
| Voltage – Input Offset (Max) | – |
| Current – Input Bias (Max) | 0.01µA @ 18V |
| Current – Output (Typ) | – |
| Current – Quiescent (Max) | 15µA |
| CMRR, PSRR (Typ) | – |
| Propagation Delay (Max) | 29µs |
| Hysteresis | 11.5mV |
| Operating Temperature | -40°C ~ 85°C |

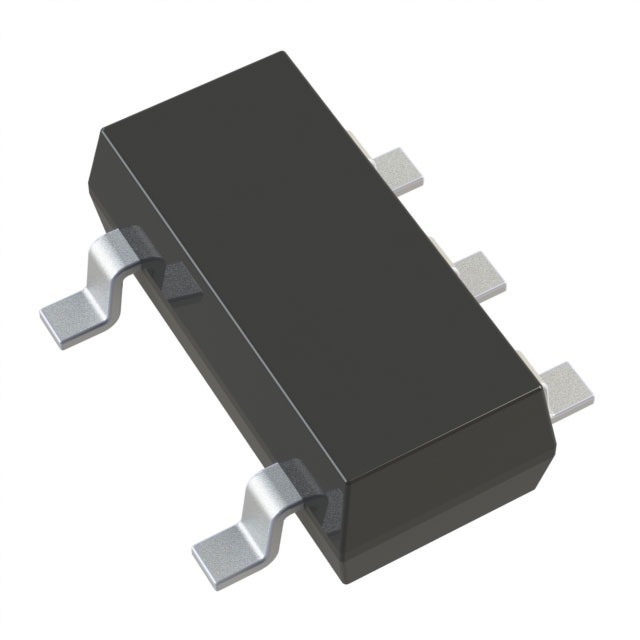

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT6703 |
