Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | UltraFast™ |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, Rail-to-Rail, TTL |
| Voltage – Supply, Single/Dual (±) | 2.7V ~ 6V |
| Voltage – Input Offset (Max) | 2.5mV @ 5V |
| Current – Input Bias (Max) | 6µA @ 5V |
| Current – Output (Typ) | 20mA |
| Current – Quiescent (Max) | 9mA |
| CMRR, PSRR (Typ) | 65dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 13ns |
| Hysteresis | 7mV |
| Operating Temperature | -40°C ~ 85°C |

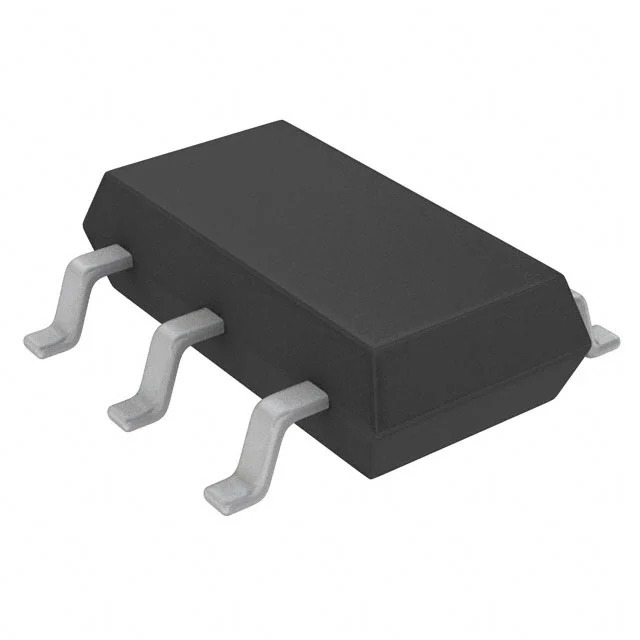

| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-6 |
| Base Product Number | LT1719 |
