Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tray |
| Part Status | Active |
| Type | Transceiver |
| Protocol | IEEE 802.3 |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Full, Half |
| Data Rate | 10Mbps, 100Mbps, 1Gbps |
| Voltage – Supply | 1.71V ~ 1.89V, 2.25V ~ 2.75V, 3.14V ~ 3.46V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | – |
| Qualification | – |
| Mounting Type | Surface Mount |

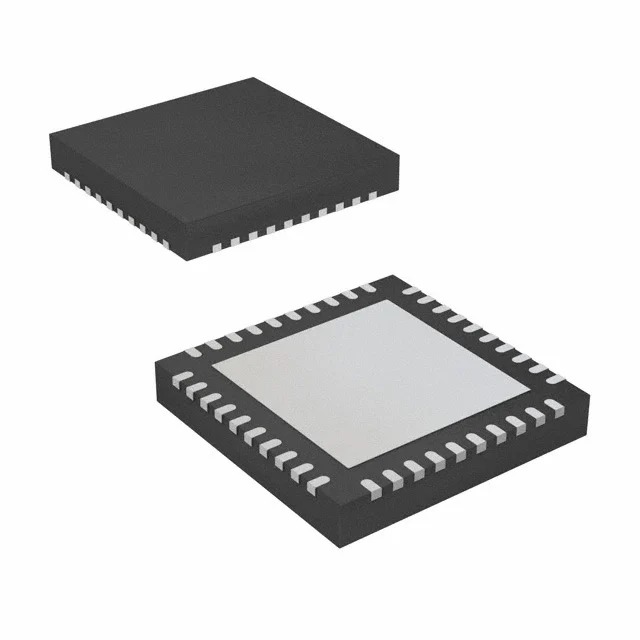

| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 40-LFCSP-WQ (6×6) |
| Base Product Number | ADIN1300 |
