Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 45mOhm |
| Voltage – Supply, Single (V+) | 5V ~ 20V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 701ns, 250ns |
| -3db Bandwidth | 171MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current – Leakage (IS(off)) (Max) | 4nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Mounting Type | Surface Mount |

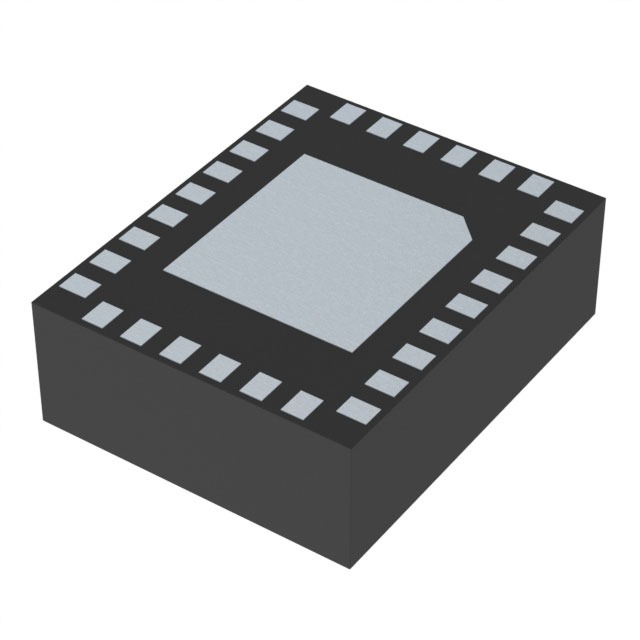

| Package / Case | 30-FLGA Exposed Pad |
| Supplier Device Package | 30-LGA (4×5) |
