Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tray |
| Part Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage – Supply, Single (V+) | 5V ~ 20V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 475ns, 190ns |
| -3db Bandwidth | 170MHz |
| Charge Injection | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 21pF |
| Current – Leakage (IS(off)) (Max) | 30pA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

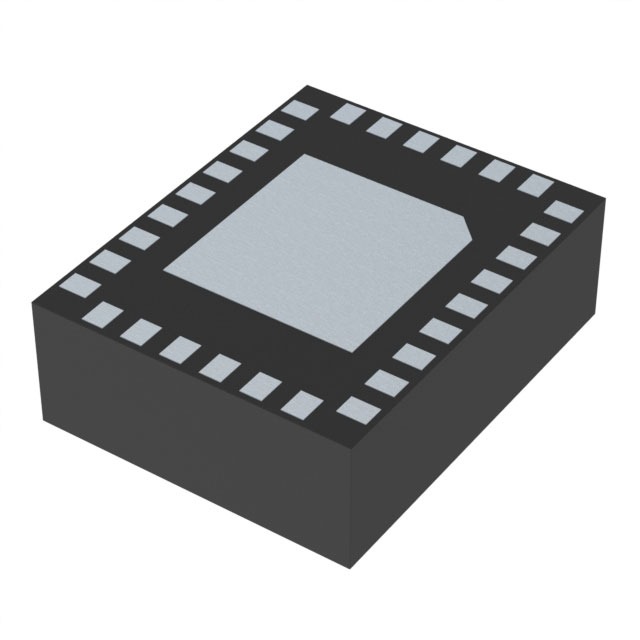

| Package / Case | 30-FLGA Exposed Pad |
| Supplier Device Package | 30-LGA (4×5) |
| Base Product Number | ADGS1414 |
