Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage – Supply, Single (V+) | 3V ~ 5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 12ns, 6ns |
| -3db Bandwidth | 400MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 7.5pF |
| Current – Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -70dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

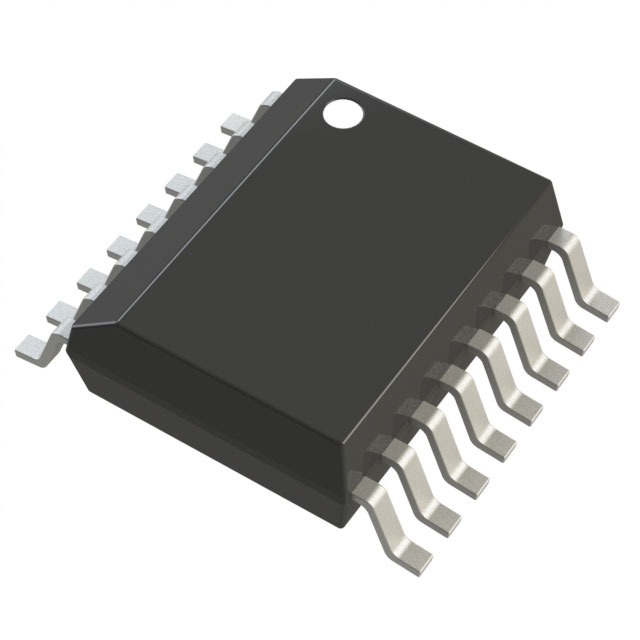

| Package / Case | 16-SSOP (0.154″, 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | ADG774 |
