Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | – |
| Voltage – Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage – Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 32ns, 16ns (Typ) |
| -3db Bandwidth | 36MHz |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 90pF |
| Current – Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

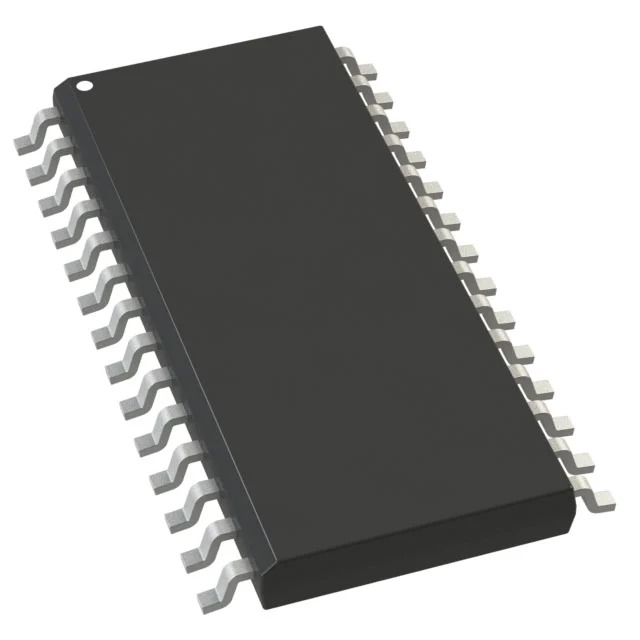

| Package / Case | 28-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | ADG707 |
