Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm |
| Voltage – Supply, Single (V+) | 9V ~ 40V |
| Voltage – Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 213ns, 152ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 250pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF, 63pF |
| Current – Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -58dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

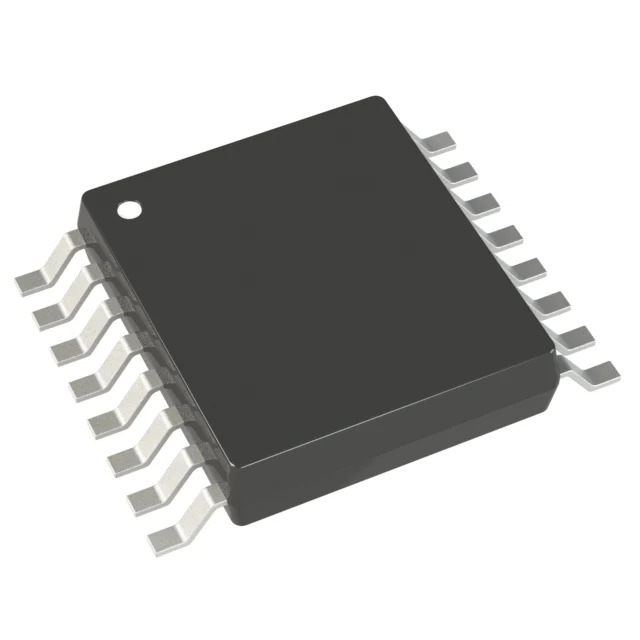

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG5436 |
