Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage – Supply, Single (V+) | 9V ~ 40V |
| Voltage – Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 230ns, 185ns |
| -3db Bandwidth | 65MHz |
| Charge Injection | 0.45pC |
| Channel Capacitance (CS(off), CD(off)) | 3.3pf, 62pF |
| Current – Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -76dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

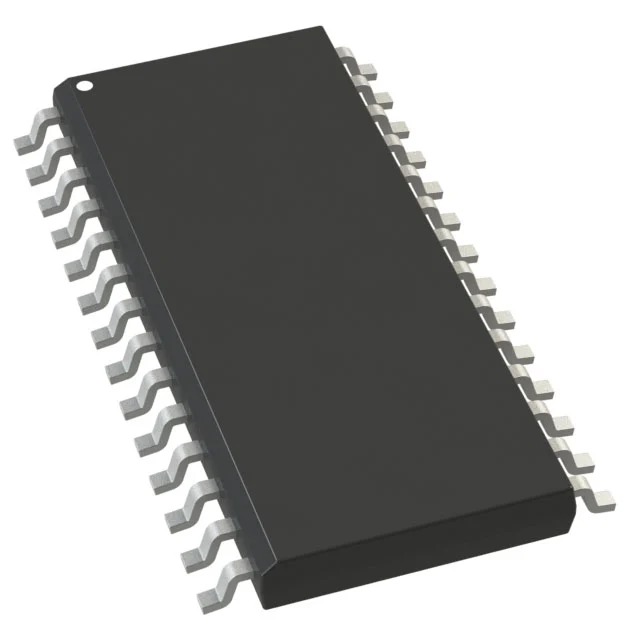

| Package / Case | 28-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | ADG5206 |
