Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Typ) |
| Voltage – Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | – |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | – |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |

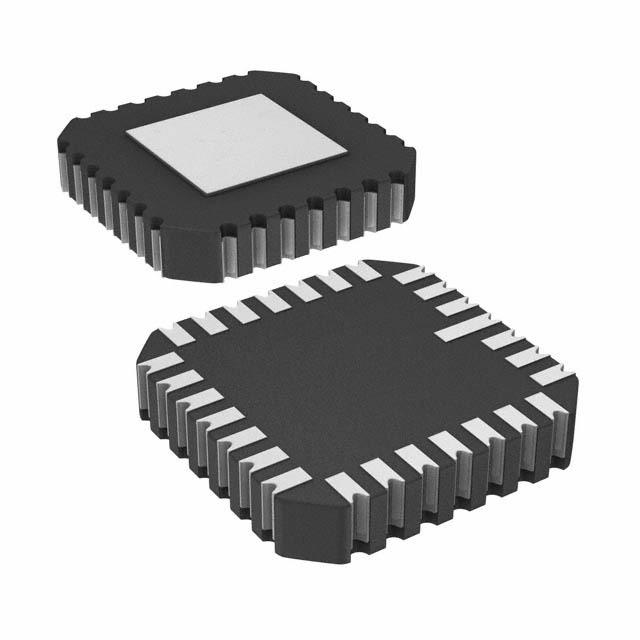

| Package / Case | 28-LCC |
| Supplier Device Package | 28-LCC (11.43×11.43) |
| Base Product Number | ADG506 |
