Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | – |
| Voltage – Supply, Single (V+) | 12V |
| Voltage – Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 160ns, 100ns |
| -3db Bandwidth | – |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 6pF |
| Current – Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | – |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

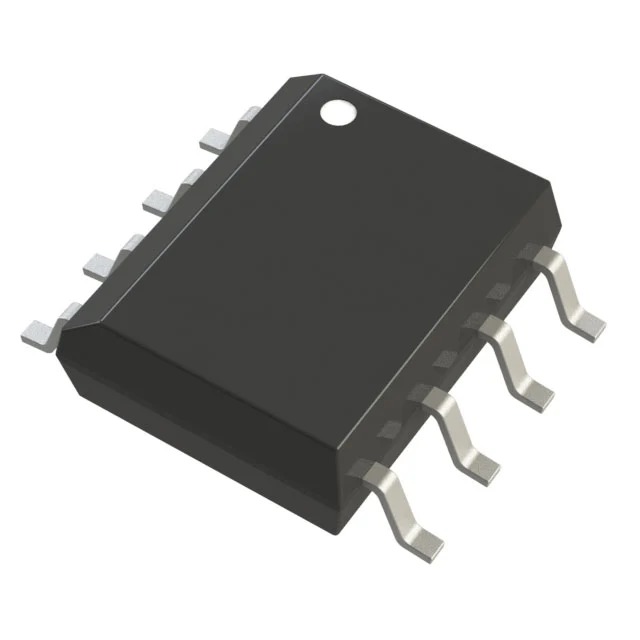

| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ADG417 |
