Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage – Supply, Single (V+) | 3V ~ 30V |
| Voltage – Supply, Dual (V±) | ±3V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 90ns, 80ns (Typ) |
| -3db Bandwidth | – |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current – Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

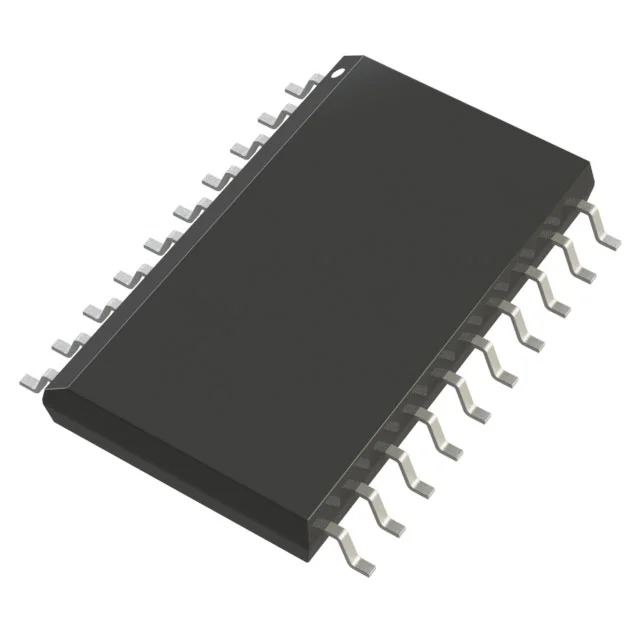

| Package / Case | 20-SOIC (0.295″, 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | ADG333 |
