Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage – Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage – Supply, Dual (V±) | ±13.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| -3db Bandwidth | – |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -86dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

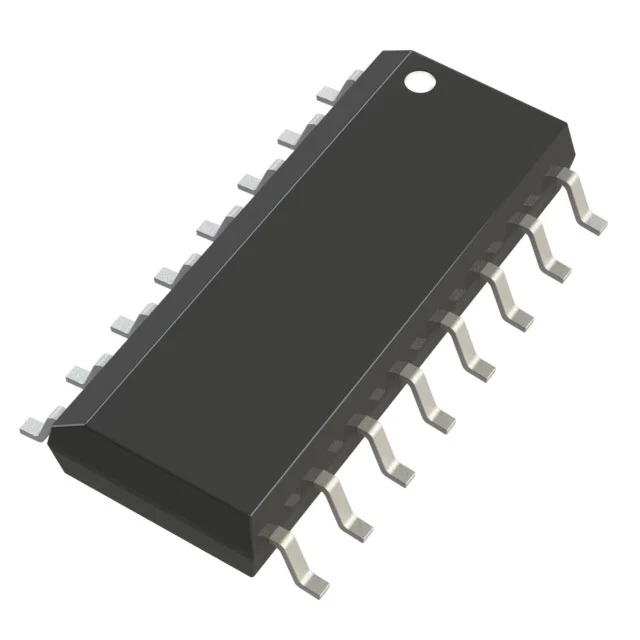

| Package / Case | 16-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADG201 |
