Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage – Supply, Single (V+) | 3.3V ~ 16V |
| Voltage – Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 38ns, 152ns |
| -3db Bandwidth | 109MHz |
| Charge Injection | -12.4pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 32pF |
| Current – Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

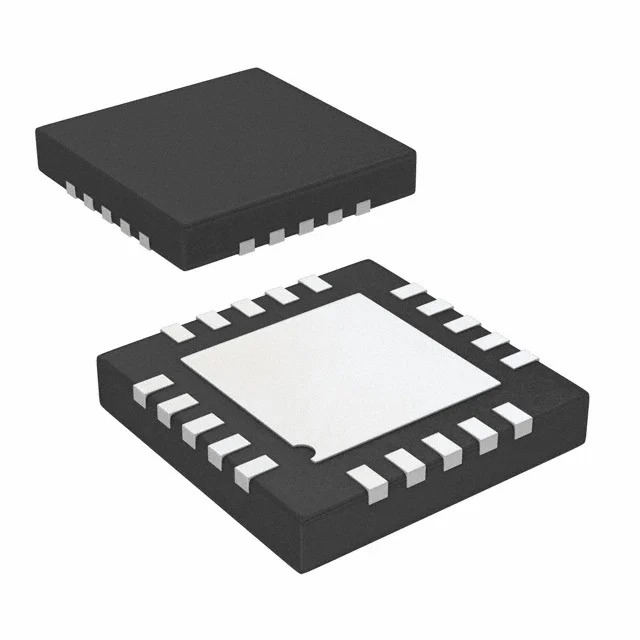

| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4×4) |
| Base Product Number | ADG1634 |
