Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage – Supply, Single (V+) | 3.3V ~ 16V |
| Voltage – Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 128ns, 109ns |
| -3db Bandwidth | 38MHz |
| Charge Injection | 33pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF, 120pF |
| Current – Leakage (IS(off)) (Max) | 150pA |
| Crosstalk | -62dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

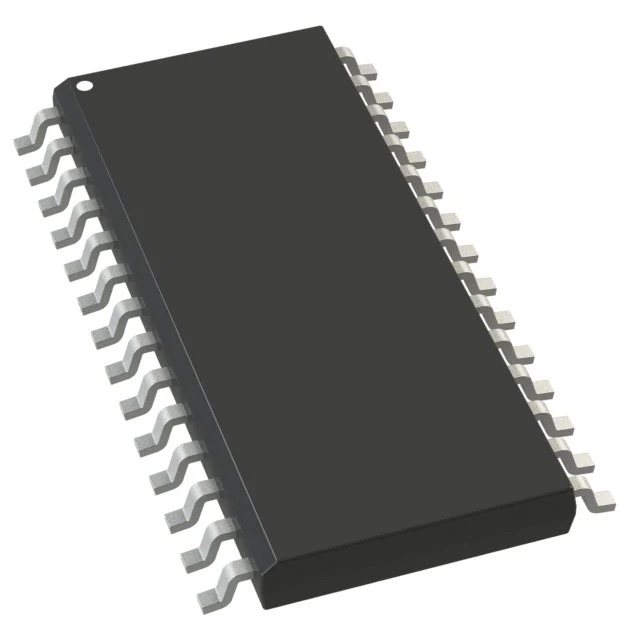

| Package / Case | 28-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | ADG1607 |
