Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage – Supply, Single (V+) | 3.3V ~ 16V |
| Voltage – Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 95ns, 173ns |
| -3db Bandwidth | 19MHz |
| Charge Injection | 125pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF, 270pF |
| Current – Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

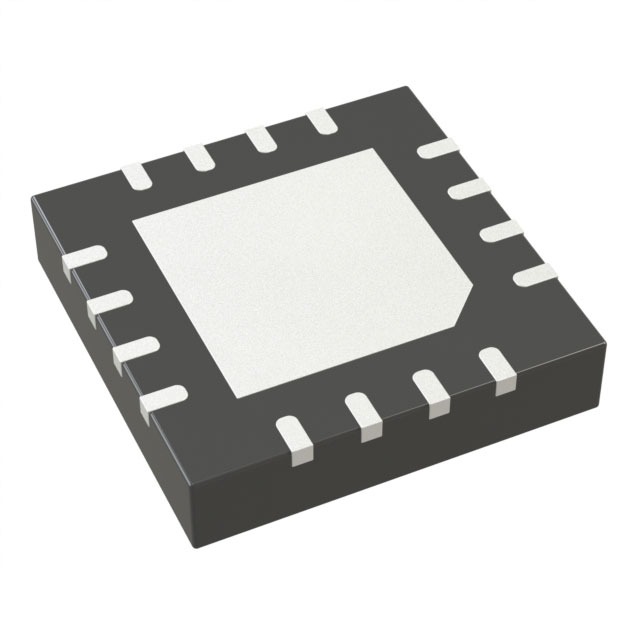

| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4×4) |
| Base Product Number | ADG1604 |
