Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 2.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage – Supply, Single (V+) | 5V ~ 16.5V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 145ns, 145ns |
| -3db Bandwidth | 180MHz |
| Charge Injection | -5pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF, 22pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -74dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

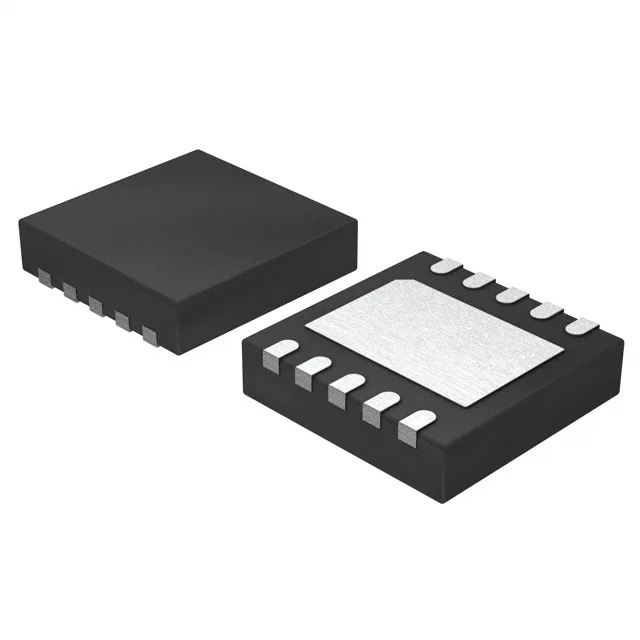

| Package / Case | 10-VFDFN Exposed Pad, CSP |
| Supplier Device Package | 10-LFCSP-WD (3×3) |
| Base Product Number | ADG1421 |
