Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.3Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage – Supply, Single (V+) | 5V ~ 16.5V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | 120MHz |
| Charge Injection | -12pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF, 41pF |
| Current – Leakage (IS(off)) (Max) | 400pA |
| Crosstalk | – |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

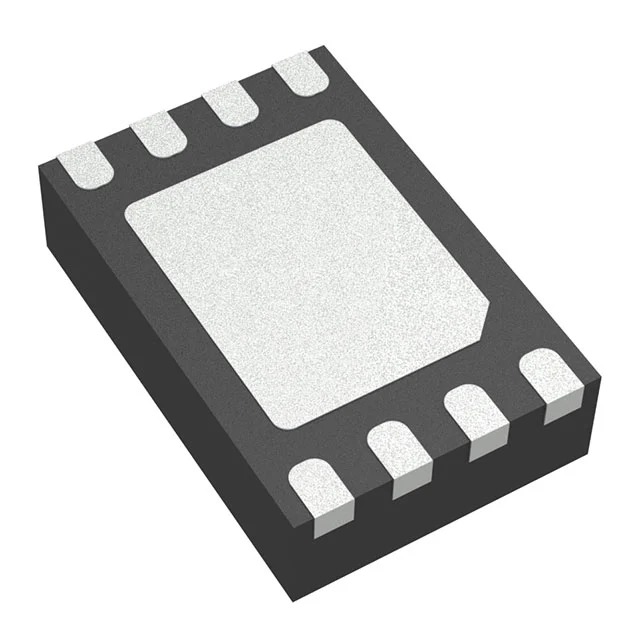

| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (2×3) |
| Base Product Number | ADG1401 |
